Maruti Swift vs Hyundai Grand i10 Nios vs Ford Figo vs Ford Freestyle: Space Comparison

Published On Sep 27, 2019 03:00 PM By Rohit for Hyundai Grand i10 Nios 2019-2023

131.6K Views
Write a comment

Which mid-size hatchback is the perfect fit for your family?

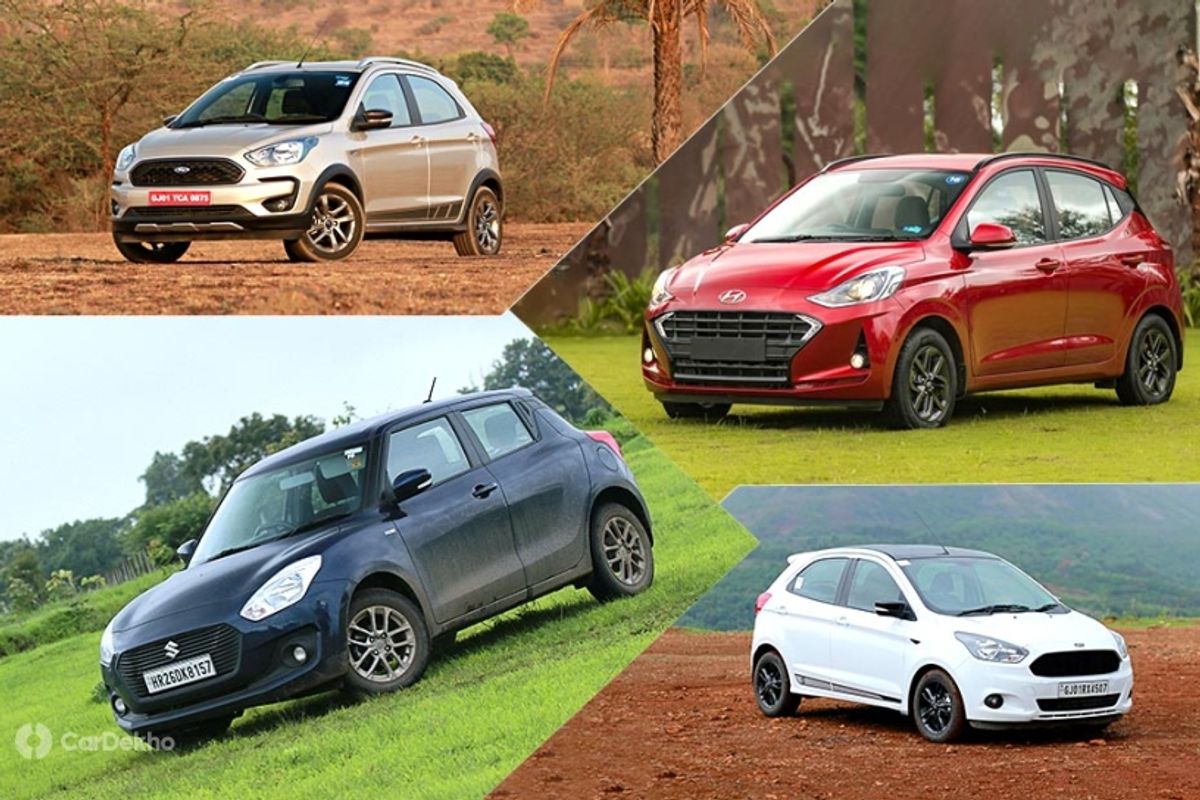

The mid-size hatchback segment boasts of models such as the Maruti Swift, Hyundai Grand i10 Nios, Ford Figo and the Ford Freestyle. The Grand i10 Nios is the freshest model here and was recently launched in a price range of Rs 5 lakh to Rs 7.99 lakh (ex-showroom Delhi). But how does it fare against its rivals in terms of cabin space?

Let’s take a look at the exterior dimensions of these hatchbacks first:

Dimensions

Measurement	Maruti Swift	Hyundai Grand i10 Nios	Ford Figo	Ford Freestyle
Length	3840mm	3805mm	3941mm	3954mm
Width	1735mm	1680mm	1704mm	1737mm
Height	1530mm	1520mm	1525mm	1570mm
Wheelbase	2450mm	2450mm	2490mm	2490mm
Boot Space	268 litres	260 litres	257 litres	257 litres

The Freestyle is the longest hatchback of the segment and shares its platform and wheelbase with the Figo. Both these Ford offerings have the least boot space among the four cars.
Measuring 268 litres, the Swift boasts of the largest boot space.
The Grand i10 Nios is smaller than the other three in all exterior measurements.
In case of wheelbase length, the Swift and the Grand i10 Nios measure the same.

Front-row Space

	Maruti Swift	Hyundai Grand i10 Nios	Ford Figo	Ford Freestyle
Legroom (min-max)	880-960mm	915-1045mm	1070-1265mm	960-1215mm
Kneeroom (min-max)	620-760mm	580-785mm	685-875mm	595-830mm
Headroom (min-max)	920-1005mm	885-995mm	945-1030mm	915-1100mm
Seat base length	480mm	500mm	530mm	500mm
Seat base width	475mm	480mm	505mm	470mm
Seat base height	615mm	615mm	635mm	640mm
Cabin width	1330mm	1320mm	1375mm	1275mm

The Figo has the maximum legroom among all the mid-size hatchbacks.
In terms of kneeroom too, the Figo has the most to offer and by a big margin.
However, taller people will find the Ford Freestyle more comfortable due to its maximum headroom.
The Ford Figo’s front seat bases are longer and wider than the rivals but the Freestyle offers maximum height.
At 1375mm, Figo also has the widest cabin up front.
Overall, Figo is the roomiest mid-size hatchback in terms of front row seating.

Also Read: Maruti Swift Vs Hyundai Grand i10 Nios Vs Ford Figo: Which Is The Quickest Diesel-MT Hatchback?

Second-row Space

	Maruti Swift	Hyundai Grand i10 Nios	Ford Figo	Ford Freestyle
Shoulder room	1265mm	1240mm	1320mm	1300mm
Head room	920mm	960mm	960mm	930mm
Kneeroom (min-max)	590-825mm	610-830mm	825-905mm	650-860mm
Seat base width	1275mm	1210mm	1270mm	1240mm
Seat base length	460mm	460mm	480mm	440mm
Seat base height	590mm	600mm	605mm	600mm

The Figo offers the maximum shoulder room of the four which would be handy to seat three adults in the back.
Both, the Grand i10 Nios and the Figo have the most headroom at the rear.
In terms of rear kneeroom, the Figo takes the first place by a huge margin again.
However, the rear bench in the Swift has the maximum width, accommodating three adults comfortably.

Pricing

	Maruti Swift	Hyundai Grand i10 Nios	Ford Figo	Ford Freestyle
Ex-showroom prices	Rs 5.14 lakh to Rs 8.89 lakh	Rs 4.99 lakh to Rs 7.99 lakh	Rs 5.23 lakh to Rs 7.69 lakh	Rs 5.81 lakh to Rs 8.26 lakh

The Grand i10 Nios is the cheapest offering of this segment.
Except for the Freestyle, all the other cars get the option of an automatic transmission.
However, the Swift and the Grand i10 Nios come with an AMT gearbox whereas the Figo gets a more sophisticated AT option.
The Swift and the Grand i10 Nios get the smallest engines in terms of engine displacement among all the offerings of the segment.
Both the Ford offerings share the same 1.5-litre diesel engine, which is the biggest among the four models.
